Product features
◎ Fast feeding speed.
◎ Long continuous working time.
◎ No leakage, clean and sanitary, suitable for clean workshop.
◎ Compact structure, convenient movement and simple operation.
◎ It is equipped with quick-fitting clamp, which is convenient for folding and cleaning, and meets the requirements.
Product Overview

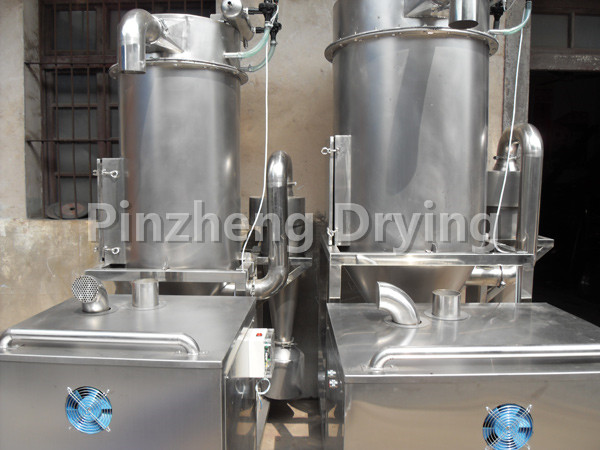

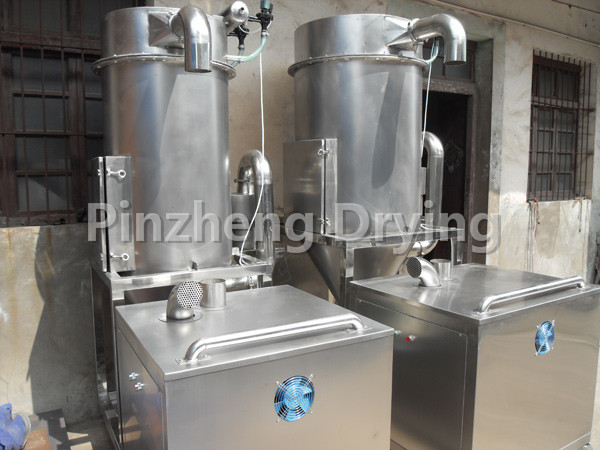

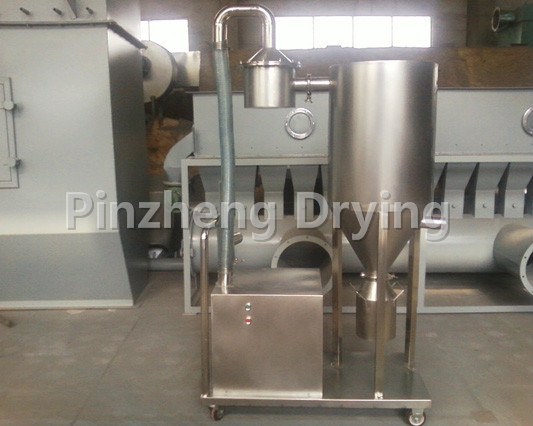

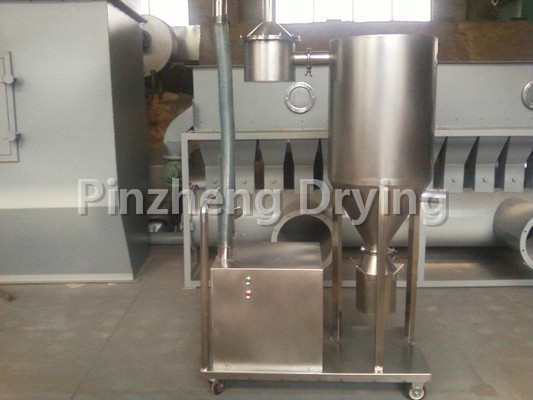

ZSL - Ⅲ series vacuum loading machine is the third generation of new vacuum loading machine newly developed by our company. It has the advantages of fast loading speed, long use cycle, convenient operation, clean and sanitary, and meets the requirements of "GMP".
Scope of application
*For powdery and small particles（ φ< 5mm) and spherical materials.
*It is used for loading of various closed containers and equipment such as two-dimensional, three-dimensional, double-cone, V-shaped, etc.
| Model/parameter | ZSL-Ⅲ-2.2 | ZSL-Ⅲ-3.0 | ZSL-Ⅲ-4.0 | ZSL-Ⅲ-5.5 | ZSL-Ⅲ-7.5 |
| Working pressure（KPa） | ＜18 | ＜20 | ＜22 | ＜28 | ＜31 |
| Blowing rate（m³/h） | 210 | 300 | 330 | 370 | 480 |
| Power（kw） | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 |
| Conveying capacity（Kg/h） | 900-1200 | 1200-1500 | 1500-1800 | 1800-2100 | 2100-2400 |
