Performance characteristics

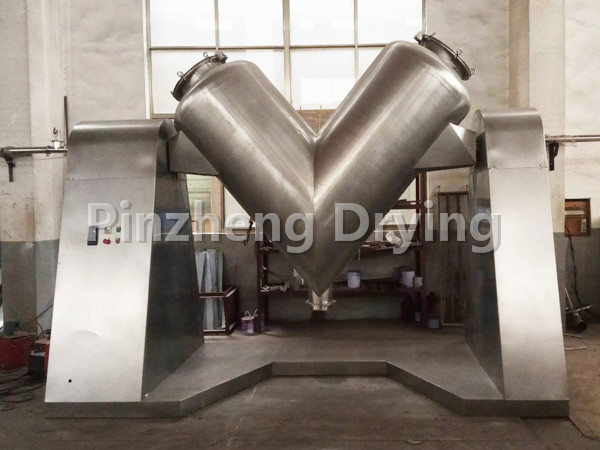

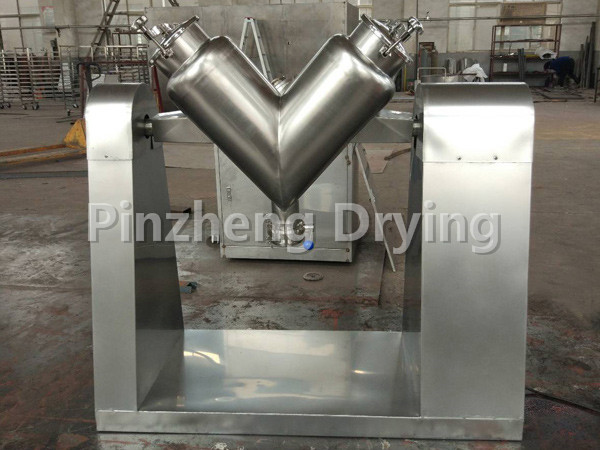

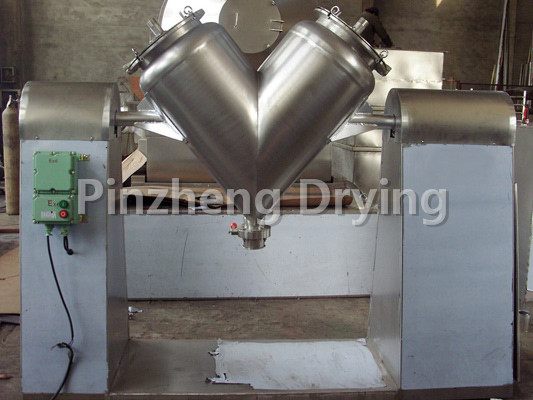

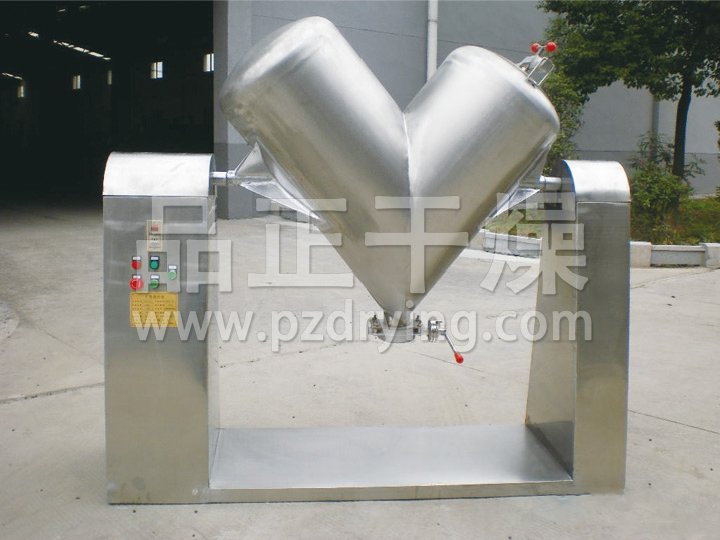

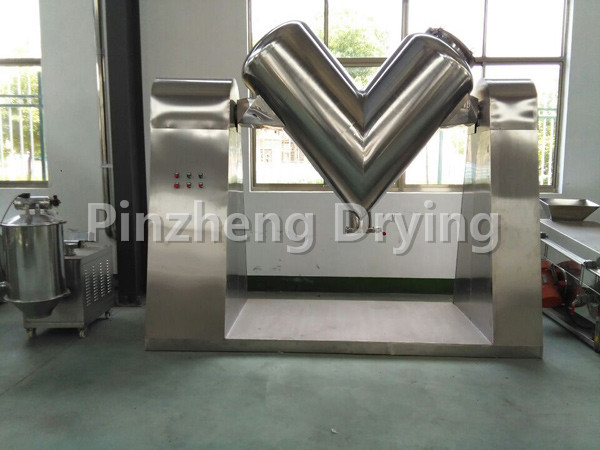

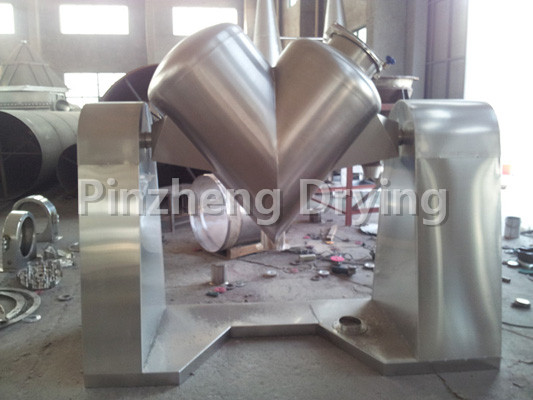

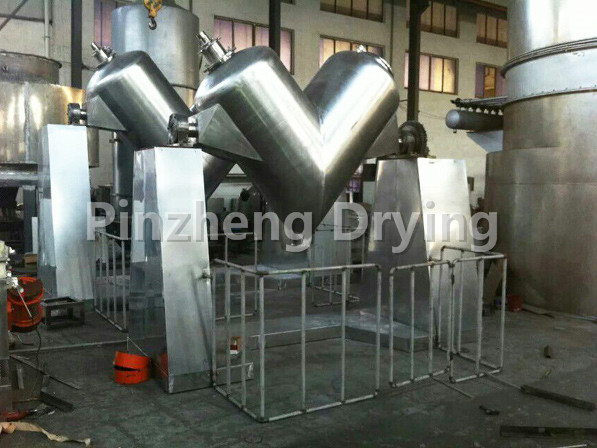

The mixing cylinder has unique structure, high mixing efficiency, no dead angle, the cylinder is made of stainless steel, the inner and outer walls are polished, beautiful appearance, uniform mixing, and wide use.
Applicable materials
This machine is used for mixing dry material particles in medicine, chemical, food, metallurgy and other industries.
| Specification items | Total volume L | Working volume L | Inventory kg | Feeding speed rpm | Motive power kw | Weight kg |
| ZKH(V)-50 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| ZKH(V)-150 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| ZKH(V)-300 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| ZKH(V)-500 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| ZKH(V)-1000 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| ZKH(V)-1500 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| ZKH(V)-2000 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| ZKH(V)-3000 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| ZKH(V)-4000 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| ZKH(V)-5000 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| ZKH(V)-6000 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| ZKH(V)-8000 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| ZKH(V)-10000 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
