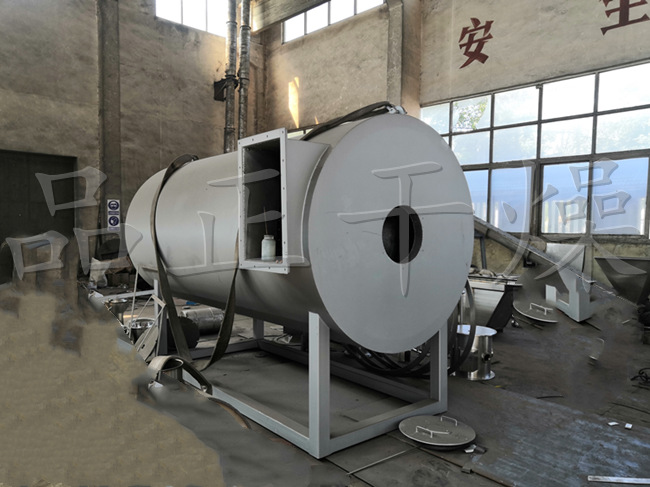

Characteristics of RLY series oil-fired and gas-fired hot-blast furnaces：

1、Easy operation and low labor intensity.

2、The equipment has compact structure and small floor area.

3、Imported burner is adopted, with complete combustion and no environmental pollution.

Principle of RLY series oil and gas hot blast stove：

　　The fuel is burned through the burner to produce high-temperature gas. The heat of high temperature gas is transferred to the heated air by means of the hot blast furnace with enhanced heat exchange measures, and the temperature of high temperature gas is reduced to 250 ℃ after the heat is released into the atmosphere. The air to be heated is forced into the hot blast furnace through the optional blower, and after heat absorption, the temperature rises to the rated value and is sent out from the hot blast outlet. Of course, when the air temperature reaches the rated upper limit temperature, the burner will automatically stop combustion or automatically switch to low fire combustion. When the hot air temperature decreases to the rated lower limit temperature, the burner will re-ignite for operation or switch to high fire combustion. The heating speed can be realized by adjusting the air inlet valve.

Application area：

1. Metal surface coating 2. Pharmaceutical industry 3. Grain processing enterprises 4. Food industry 5. Wood processing industry 6. Textile printing and dyeing 7. Chemical industry 8. Automobile industry
